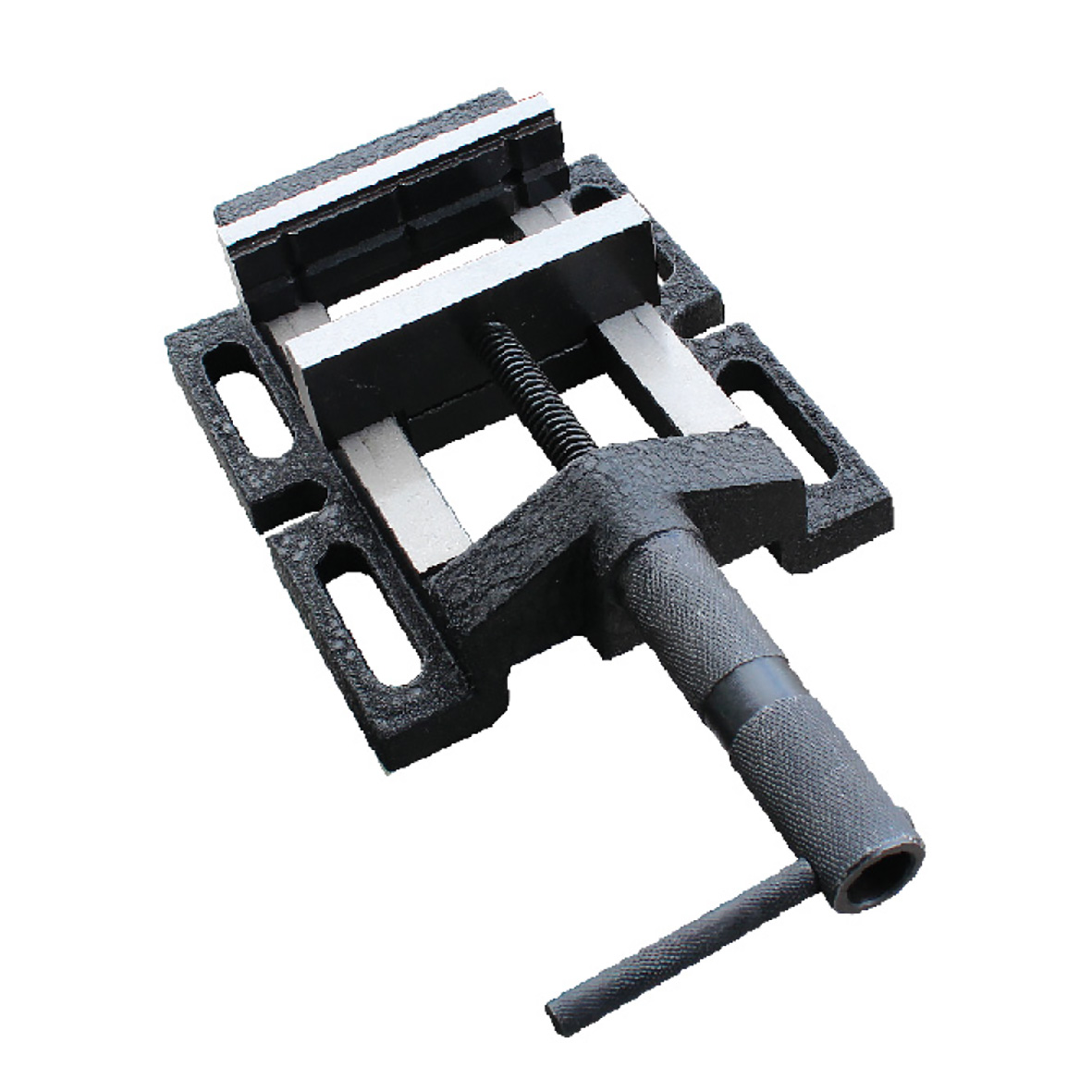

Machine Vices-BMS

Features：
·Robust type with prism jaws
·Smooth running
·Ground slideways
·Hardened jaws

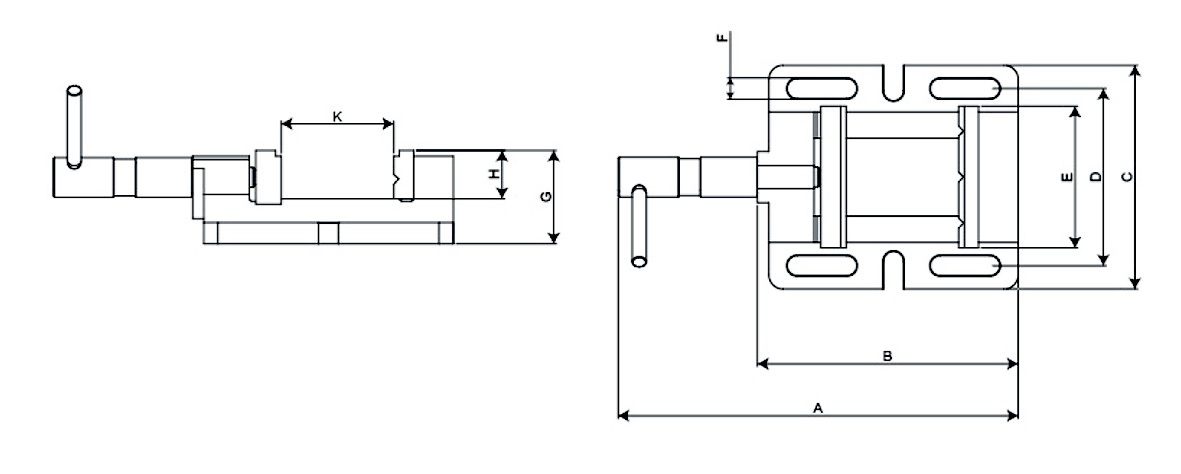

Technical data	Unit	BMS 85	BMS 100	BMS 125	BMS 150	BMS 200
A	mm	230	280	320	380	450
B	mm	150	182	210	245	285
C	mm	135	156	175	195	250
D	mm	105	125	140	160	215
E	mm	85	100	120	150	200
F	mm	11	13	14	14	16
G	mm	58	68	72	78	95
H	mm	29	33	33	39	53
K	mm	65	85	110	135	165
Weight	kg	3.5	4.5	5.5	7.5	13
