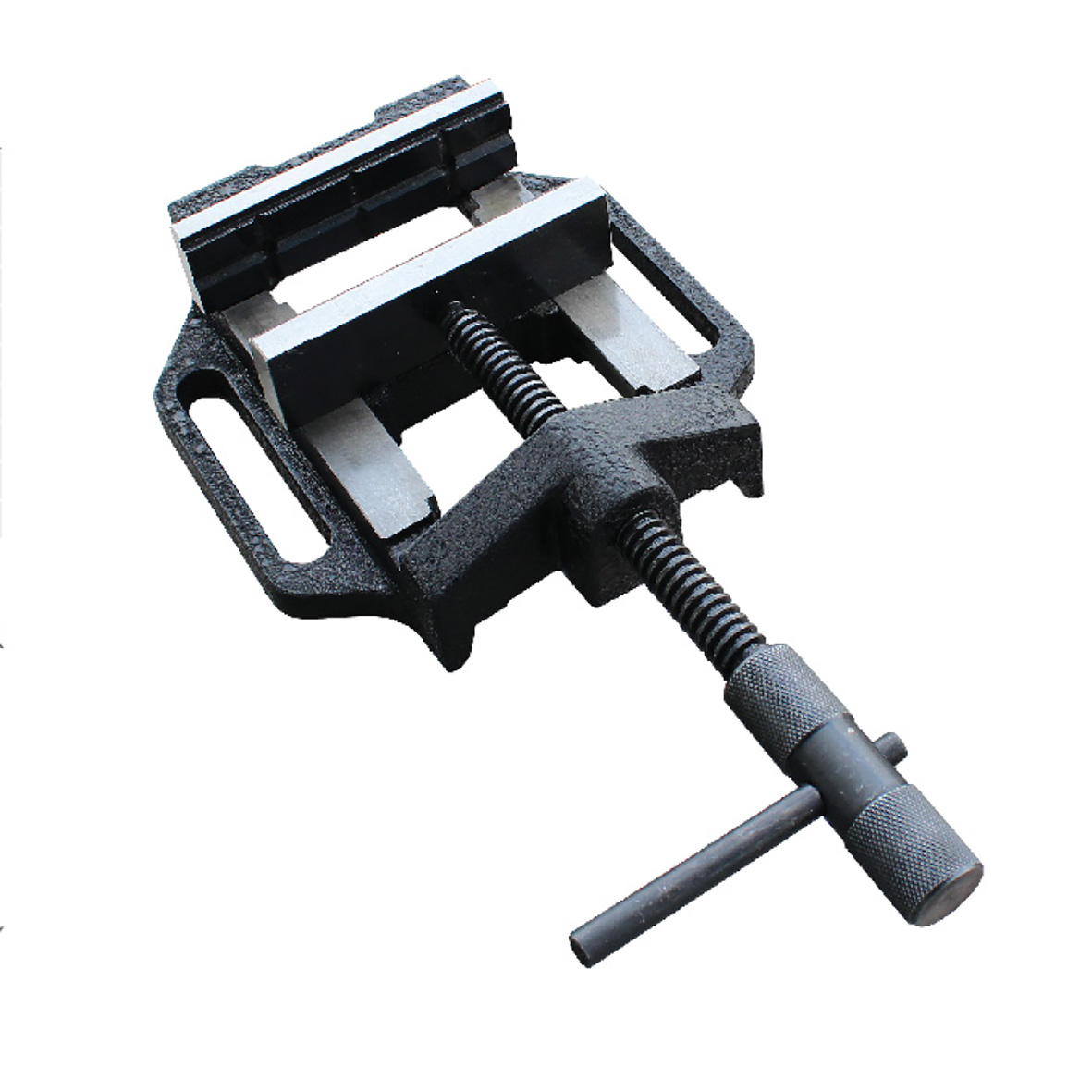

Machine Vices-MSO

Features：
·Economy type with prism jaws
·Smooth running
·Ground slideways
·Hardened jaws

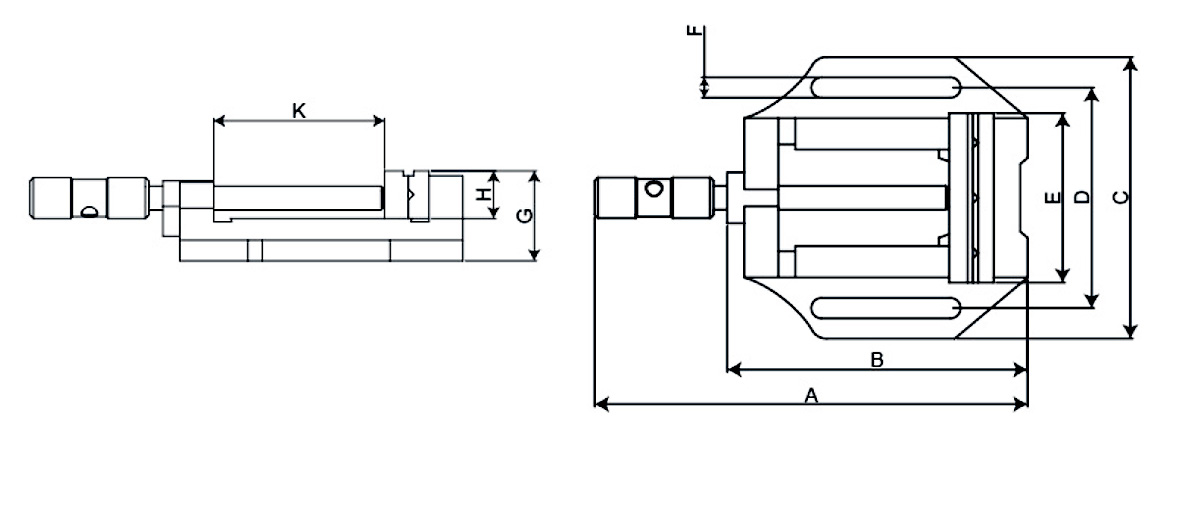

Technical data	Unit	MSO 75	MSO 100	MSO 125	MSO 150	MSO 200
A	mm	215	260	300	328	400
B	mm	130	175	204	230	300
C	mm	130	160	182	208	248
D	mm	100	130	150	170	210
E	mm	80	100	125	150	200
F	mm	12	12	14	16	16
G	mm	54	55	65	68	72
H	mm	27	27	32	33	39
K	mm	55	90	110	135	190
Weight	kg	2.2	3.2	4.5	5.8	10.5
