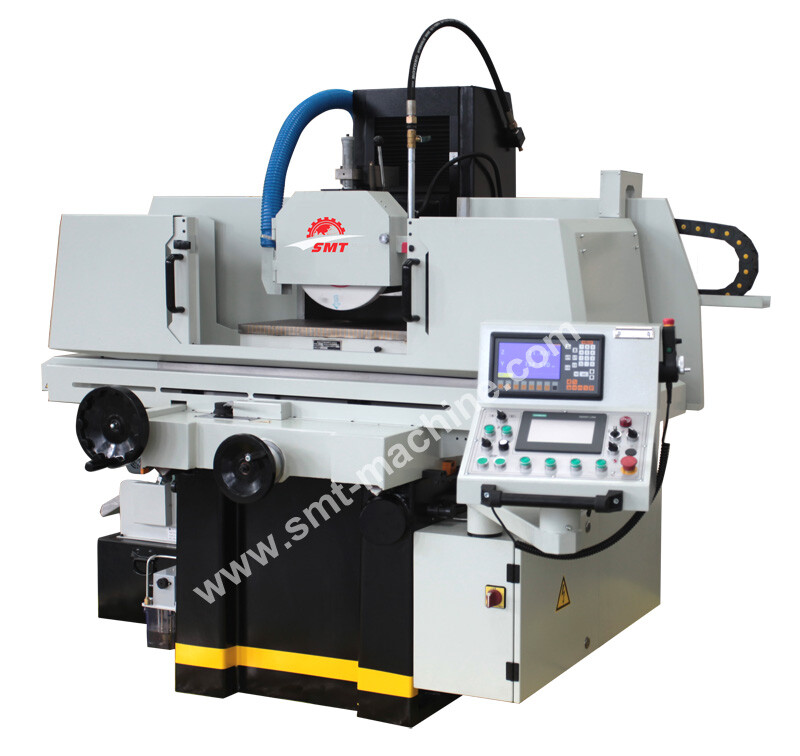

BSG 2550 PLC
MESSAGE

ModelBSG 2550 PLC
Table dimensions250 x 510 mm
T-slot quantity / width1 / 14 mm
Electric magnet clamping plate250 x 500 mm
Max. travel, longitudinal560 mm
Max. travel, cross275 mm
Max. distance spindle / table450 mm
Max. workpiece weight*180 kg
Grinding wheel200 x 20 x 31,75 mm
Table speed, hydraulic5 - 25 m/min
Cross adjustment
Automatic adjustment, cross0,5 - 8 mm/Stroke
Rapid feed, cross990 mm/min
Adjustment per handwheel   rotation4 mm/rev.
Scale division on handwheel0,02 mm
Vertical adjustment
Automatic adjustment, vertical0,005 / 0,01 / 0,02 / 0,03   / 0,04 / 0,05 mm
Rapid feed, vertical480 mm/min
Adjustment per handhwheel rotation2 mm/rev.
Scale division on handwheel0,005 mm
Motor power of sanding spindle2,2 kW
Spindle speed2850 rpm
Motor power of hydraulic pump0,75 kW
Motor power of vertical feed0,5 kW
Length1900 mm
Depth2050 mm
Height1840 mm
Weight approx.1750 kg
