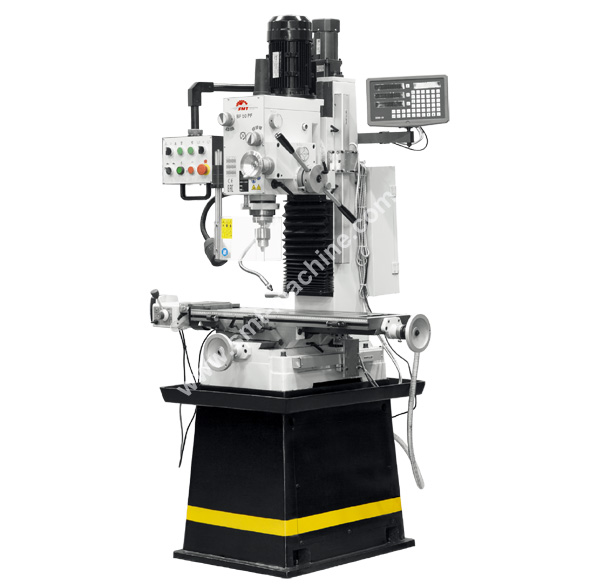

BF 50 ~ 55
Feature:
· Compact design and versatility drilling and milling machine
· Swiveling head for wide range of applications
· Easy to operate switches on swivelling controlling panel
· Lubrication gear head with quite operation
· Depth ruler easy to read at front panel as standard
· Rigid constrction of table and base
· Casting iron stand
· 2-speed powerful motor
· Power elevation mill head
· X-axis power feed as standard
· Swivel work table is available
· Equip with safety spindle guard, LED work lamp, coolant system
· BF 55 provide to mechanical spindle auto-feed
MESSAGE
Model No.BF 50BF 55
Max. drilling capacity40mm40mm
Spindle sleeve diameter75mm75mm
Spindle taperMT4MT4
Spindle stoke120mm120mm
Spindle speeds75-3200rpm/1275-3200rpm/12
Spindle feeds~0.1/0.18/0.26mm/r
Head tiltable±45°±45°
Distance spindle to column258mm258mm
Distance spindle to table460mm460mm
Table size800×240mm800×240mm
T-slot3x14x80mm3x14x80mm
Cross travel190mm190mm
Longitudinal travel auto/manual560mm/480mm560mm/480mm
Vertical travel350mm350mm
Table swivel~~
Max. workpiece weight100kg100kg
Coolant pump0.09kw0.09kw
Lifting motor0.35kw0.35kw
Main motor 1.1/1.5kw1.1/1.5kw
Net weight480kg480kg
Gross weight550kg550kg
Dimension of machine1600x930x2110mm1600x930x2110mm
Packing size960x1050x2050   mm960x1050x2050   mm
Standard accessriesOptional accessories
Safety spindle cover3-axis digital readout
Depth rulerDrilling vise-BMS 200
LED work lampMilling vise-QG 6
Coolant systemCollet chucks
Casting iron stand58pcs clamping kits
X-axis power feedVariable speed head by inverter
Power elevationPnumetic tool clamping
Drill chuck

Drawbar

Arbor

Toolbox & tools
