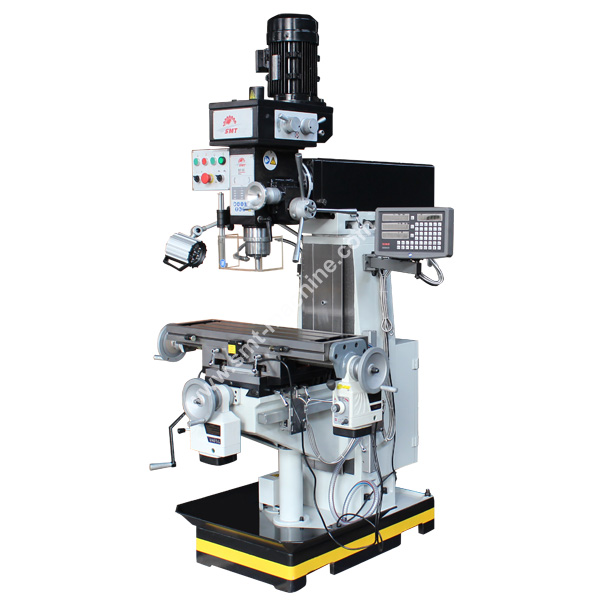

BF 60
Feature:
· Compact design and versatility drilling and milling machine
· Swiveling head for wide range of applications
· Easy to operate switches on front controlling panel
· Lubrication gear head with quite operation
· Rigid constrction of table and base
· 2-speed powerful motor
· X and Y-axis power feed as standard
· Swivel work table is standard
· Equip with safety spindle guard, LED work lamp, coolant system
· BF 60 Vario drive by inverter and frenquecy motor
MESSAGE
Model No.BF 60BF 60 Vario
Max. drilling capacity30mm30mm
Spindle sleeve diameter90mm90mm
Spindle taperISO40ISO40
Spindle stoke120mm120mm
Spindle speeds115-1750rpm/875-600/250-2000rpm
Spindle feeds~~
Head tiltable±45°±45°
Distance spindle to column200-700mm200-700mm
Distance spindle to table65-385mm65-385mm
Table size1000×240mm1000×240mm
T-slot4x14mm4x14mm
Cross travel160mm160mm
Longitudinal travel 580580
Vertical travel350mm350mm
Table swivel±45°±45°
Max. workpiece weight150kg150kg
Coolant pump0.04kw0.04kw
Lifting motor~~
Main motor 1.1/1.5kw1.5kw
Net weight760kg760kg
Gross weight860kg860kg
Dimension of machine1360x1150x2080mm1360x1150x2080mm
Packing size1150x1140x2250   mm1150x1140x2250   mm
Standard accessriesOptional accessories
Safety spindle cover3-axis digital readout
LED work lampDrilling vise-BMS 200
Coolant systemMilling vise-QG 6
X and Y-axis power feedCollet chucks
Drill chuck58pcs clamping kits
DrawbarPnumetic tool clamping
Arbor

Toolbox & tools
