MUF 150 ~ 200 Servo
Feature:
· High quality mill for heavy work in work shop
· A servomotor for feeds and rapid feed in x/y/z-axis

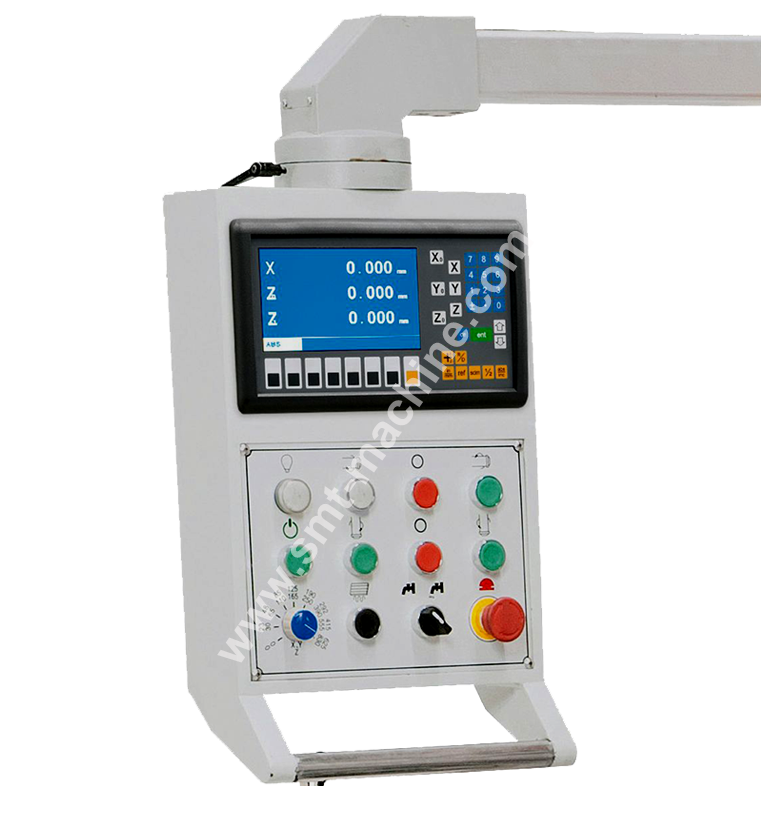

· Easy to operate switches on swivelling controlling panel
· Deluxe and quality aluminum arm frame for controlling panel
· Precision hardened work table and guideways
· Accurate polished hardened gears for quiet operation
· Machine body in heavy construction for vibration free

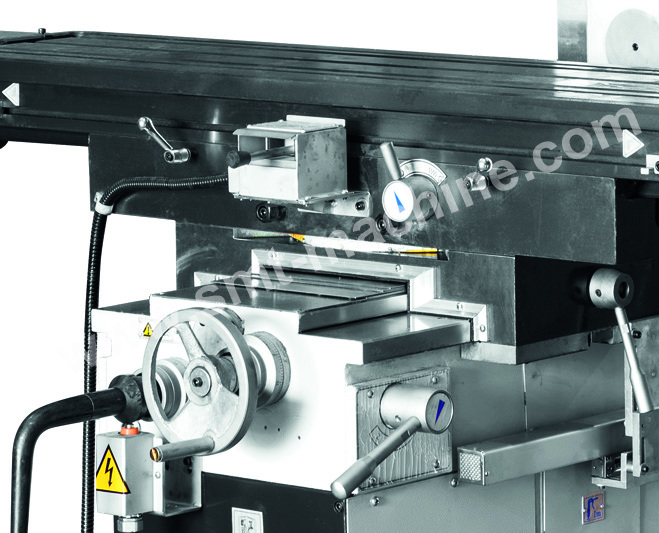

· Rectangular guide at the y- and z-axis increases stability
· Main Schneider electrical components provide quality
· Automatic central lubrication for the guideways
· Swivel work table is available
· Professional spindle guard for safety operation
MESSAGE
Model No.MUF 150 ServoMUF 200 Servo
Table size1370×320mm1600×360mm
T-slot3-12mm-80mm3-18mm-80mm
Spindle taper (V)ISO   40ISO   50
Spindle taper (H)ISO   40ISO   50
Spindle speeds (V)45-1660rpm(12)60-1750rpm(12)
Spindle speeds (H)35-1500rpm(11)60-1800rpm(12)
Cross travel360mm300mm
Longitudinal travel1000mm1300mm
Vertical travel400mm400mm
Distance spindle to table (V)210-610mm185-585mm
Distance spindle to table (H)30-430mm15-415mm
Distance spindle to column305-805mm215-840mm
Table swivel±   45°±   45°
Max. workpiece weight300kg300kg
Feeding rate (X/Y)30-830mm/min23-625mm/min
Vertical feeding rate (Z)23-625mm/min5-500mm/min
Rapid feed (X/Y/Z)1000/1000/750mm/min1200/800/600mm/min
Servo motor10   Nm/1.5kw10   Nm/1.5kw
Coolant pump90w90w
Main motor (V/H)3.0/3.0kw5.5/4.0kw
Net weight1850kg2650kg
Gross weight2000kg2800kg
Diamesion of machine2220x1600x2000mm2520x2100x2000mm
Packing size1800x1700x2250mm2150x2250x2250mm
Standard accessriesOptional accessories
LED work lamp3-axis digital readout
Coolant systemSwivel work talbe
Automatic central lubrication

Aluminum arm controlling   panel

Spindle safety cover

3-axis digital readout

ER collet chucks/8pcs

6" milling vise

Arbors

Tools
