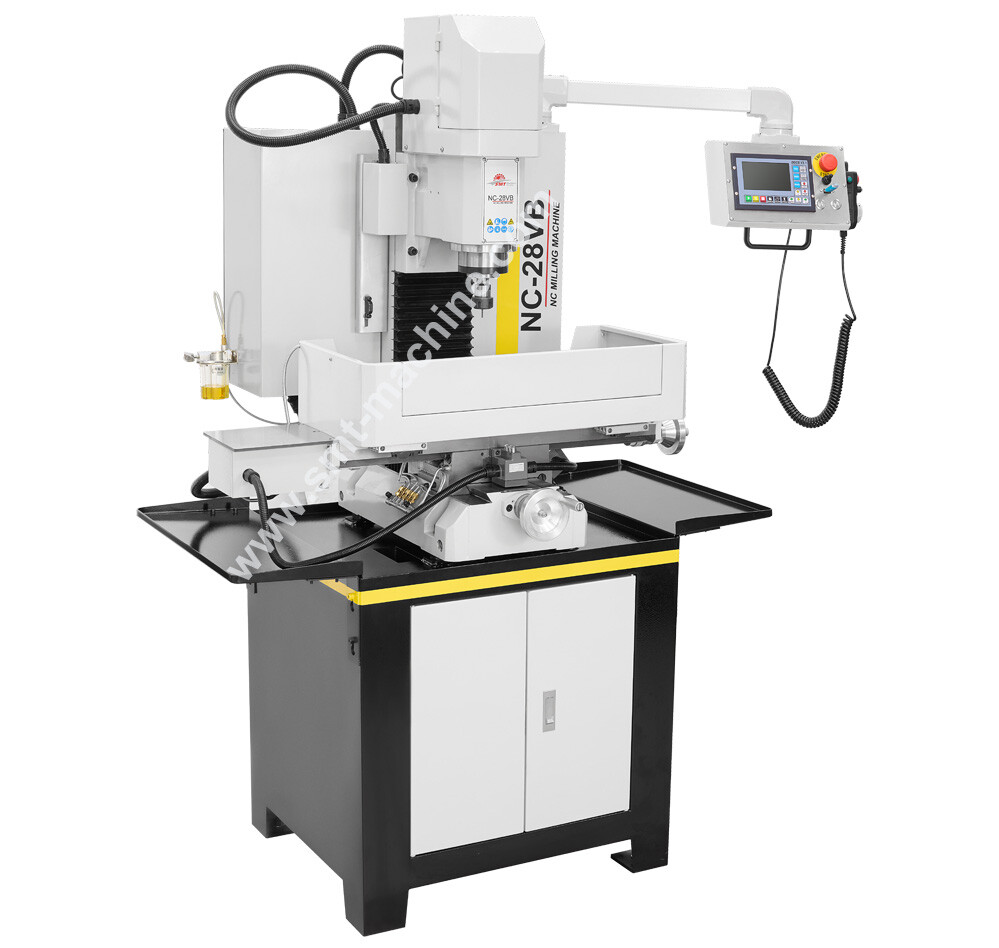

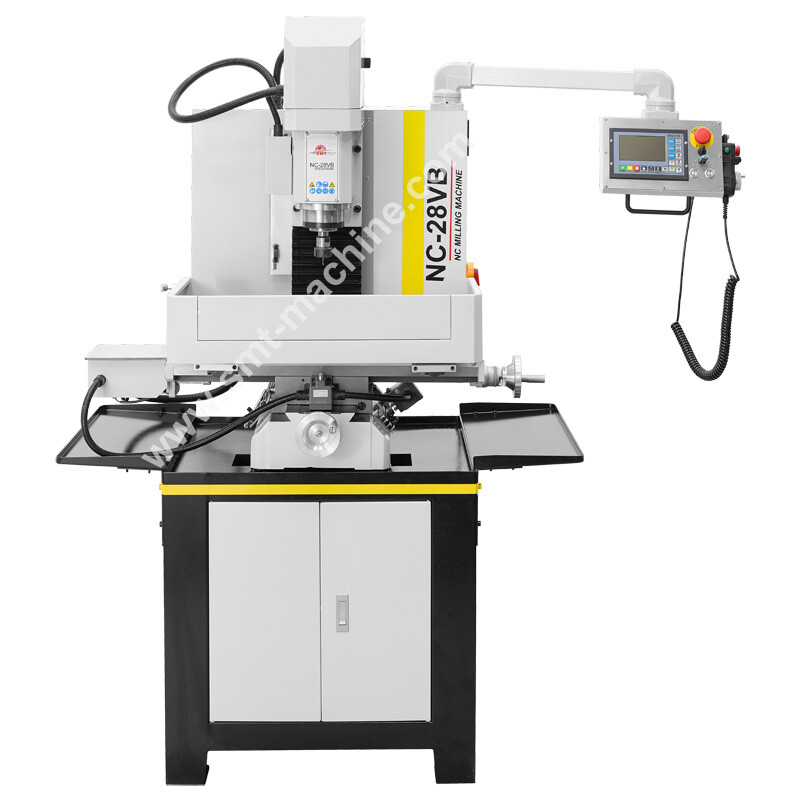

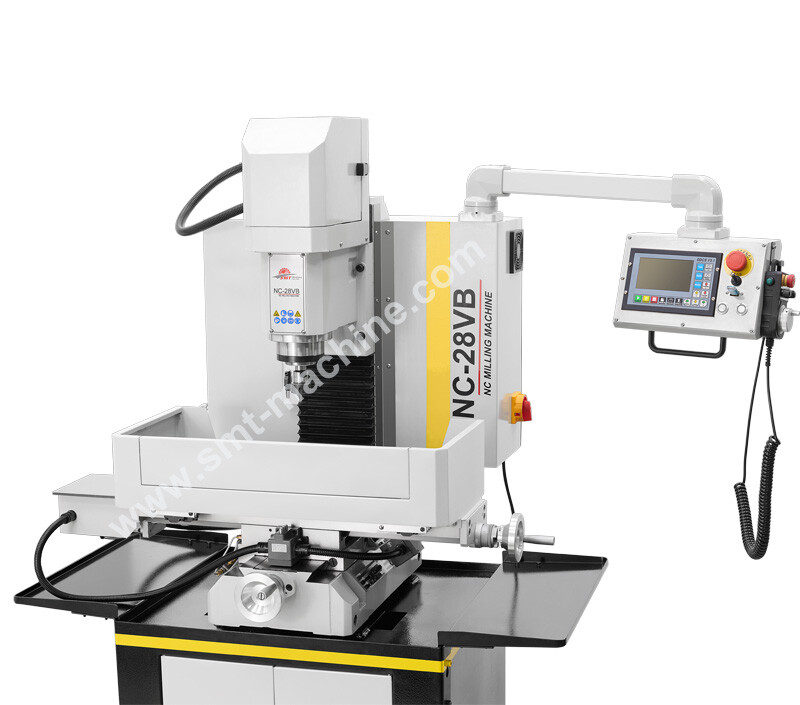

NC-28 Vario
Feature:
• Compact design suitable for training and small workshop
• 1.0kw powerful spindle servo motor
• X/Y/Z-axis servo motors drive
• X/Y/Z-axis ball leadscrews
• Central lubrication for guide ways and ball screws
• Stable cast frame in rigid bed and coloum construction
• DDCS V3.1 system is easy for beginner to learn

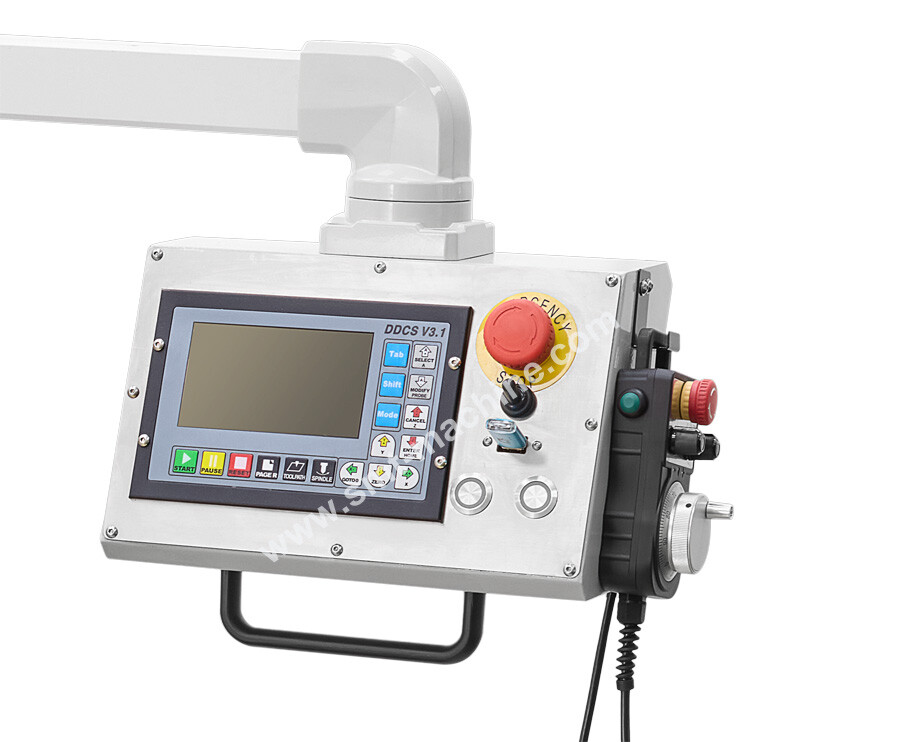

• Aluminum arm control panel
• X/Y-axis manual operation is available
• Work table cover with micro switch for safety
• Stand & oit tray is optional for saving cost
MESSAGE
Model   No.NC-28 Vario
Working area
Table size700x180mm
Table load   capacity100kg
T-slot   (number/width/distance)3/12/63mm
Spindle nose   to table surface distance50-340mm
Spindle to   coloum distance210mm
Travel
Travel X-aixs520mm
Travel Y-aixs200mm
Travel Z-aixs290mm
Headstock
Spindle speed4500rpm
Spindle taperMT3
Feed speed
Rapid feed X-axis3000mm/min
Rapid feed Y-axis3000mm/min
Rapid feed Z-axis3000mm/min
Work feed2000mm/min
Accuracy
Min. setting unit0.001mm
Positioning accuracies0.05mm
Repeatable positioning accuracies0.02mm
Drive capacity
Spindle servo motor1.0kw
X-axis servo motor0.75kw
Y-axis servo motor0.75kw
Z-axis servo motor1.0kw
Total power consumption3kva
Control systemDDCS V3.1
Ball screws and Linear
Diameter of X/Y/Z axis ball screwsΦ20mm
Shipping information
Net weight300kg
Machine working dimension (incl. stand)1210x900x1720mm
Packing size (incl. stand)1300x920x1870mm
Standard accessories Optional accessories
DDCS V3.1 control systemStand & oil tray
Control panelCoolant system
Central lubricationER collect chucks
Work table coverMilling vise-QG4
LED work lampRotary table-HV4
Tools and toolbox
