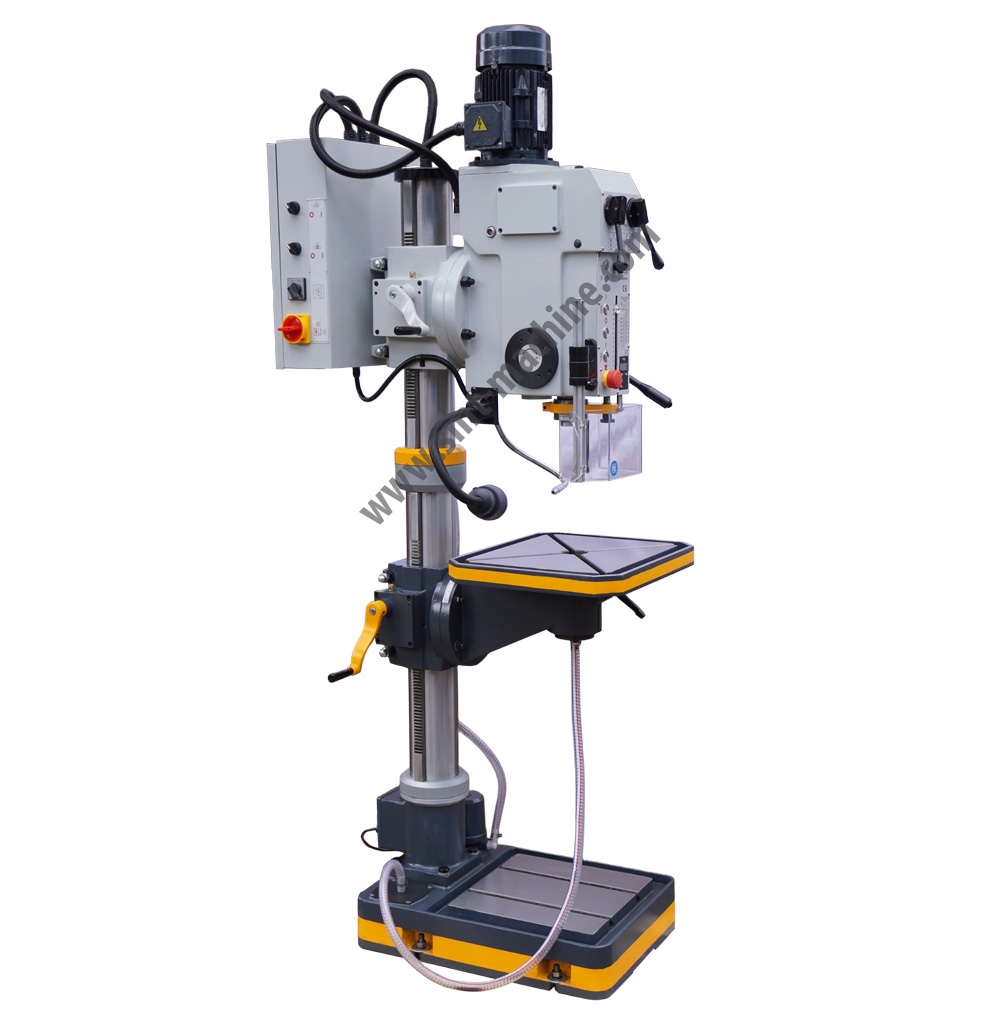

GB 35 Pro
Feature:
· Industrial gear drive column drilling machine
· Lubrication gear head with quite operation
· Adjustable drill depth stop with scale,reading at the front
· Depth ruler easy to read at front panel as standard
· Rigid constructuion of base
· Automatic tool release device
· Electromagnetic spindle sleeve feed,tapping device
· Powerful 2-speed motor
· 24V controlling wiring
· Equip with safety spindle guard, LED work lamp, coolant system
MESSAGE
Model   No.GB 35 Pro
Drilling capacity35mm
Tapping capacityM22
Table capacity150kg
Spindle taperMT4
Spindle speeds125-3030rpm/12
Spindle feed0.1, 0.2,   0.3mm/r
Dsitance spindle to column380mm
Dsitance spindle to tabel720mm
Dsitance spindle to base1260mm
Spindle stroke160mm
Column diameter120mm
Table size500x420mm
T-slot of table14mm
Base size650×460mm
T-slot of base14mm
Net weigh450kg
Gross weight480kg
Feeding motor~
Coolant pump0.075kw
Main motor1.1/1.5kw
Diamesion of machine530x850x2200mm
Packing size560×880x2250mm
Standard   accessoriesOptional accessories
Spindle coverKeyless drill chuck
Depth rulerBSM 200 vice
LED work lampTQ 140 vice
Tapping function58pcs clamping kits
Spindle auto-feed
Coolant system
Drill chuck
Arbor
Tools
